Treedix
4PCS TRS Jack Breakout Board PCB Pannel Mount 6pin 1/4'' 6.35mm Female Socket Stereo Headphone Jack
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto

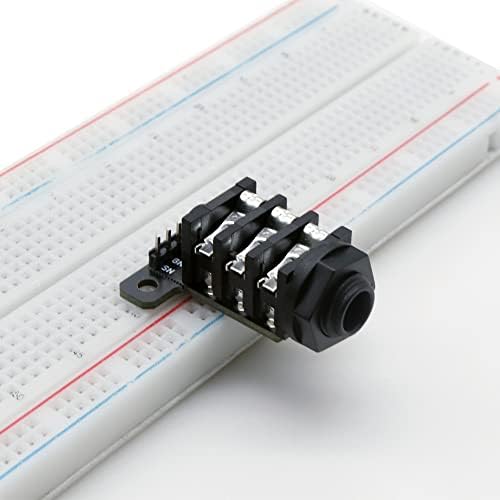

- The TRS jack breakout board is a simple circuit board that allows a 1/4" stereo audio jack to be soldered for easy access to all its breakout pins, making the jack easier to use with a breadboard
- This board contains all the pins you need to access the TRS jack, including GND, T (tip), TN (tip neutral), R (ring), RN (ring neutral), S (sleeve) and SN (Sleeve Neutral).
- High quality: Made of high quality materials, the holes are all gold-plated to improve strength, the surface is gold-plated to prevent oxidation, very strong and reliable
- Ease of Use: Using TRS 6.5mm audio jacks is perfect, and these pre-soldered pins make them very convenient during the prototyping stage.
- Wide application: suitable for media players, MP3 players, audio and video equipment, car audio, etc.
AR$24,788
31% OFF
AR$17,090
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$24,788
31% OFF
AR$17,090
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
Specification: Material: metal, plastic Color: black, silver PCB board size: 30.4*27.9mm Socket conditions of use: Temperature: -25~70° Rated load: DC 30V 0.3A Contact resistance: ≤0.05Ω Insulation resistance: ≥100MΩ Withstand voltage: AC250V (50Hz) 1min Insertion force: 5-30N Note: This product needs to be welded by yourself
