Myoware
MyoWare 2.0 Cable Shield - Non-Wearable Project Connector - On-Board snap connectors - 3.5mm TRS Jack Attach a Traditional Three-Electrode Sensor Cable - Board Dimensions: 1.48in x 1.41in
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto

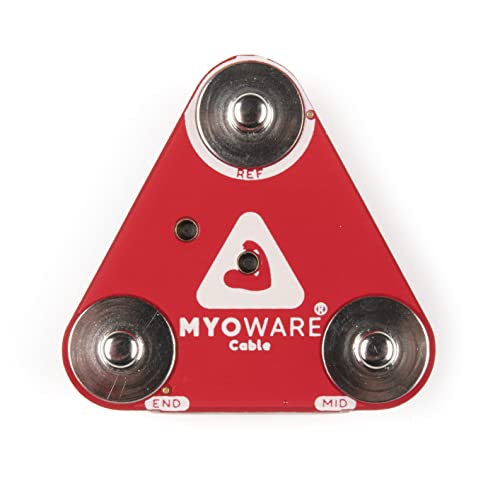

- MyoWare 2.0 Muscle Sensor Form Factor: 3x Male Snap Pins (Input Electrodes): Easily attach to other MyoWare boards; Snap to bottom side of Muscle Sensor Board

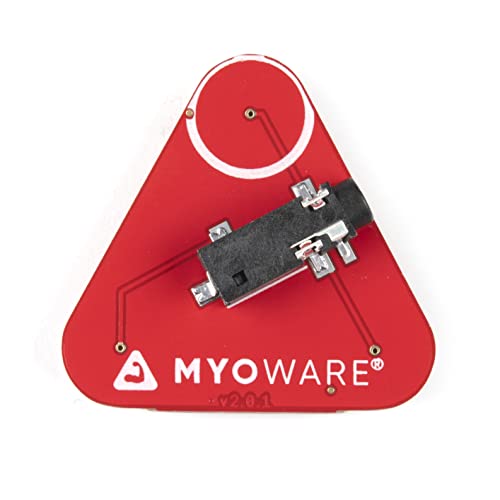

- 1x 3.5 mm TRS Connector: Attach traditional 3 electrode sensor cable; Test and use muscle sensor without attaching board to a person

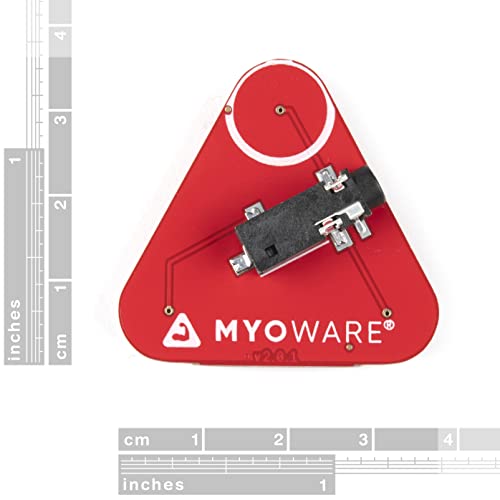

- Board Dimensions: 37.57 mm x 35.90 mm (1.48 in x 1.41 in); Note: Accessory only; MyoWare 2.0 Muscle Sensor will need to be purchased separately
- Use with non-wearable projects: Projects housed in an enclosure or that target muscles that are too small or situated such that the on-board electrode sockets would not be suitable
- Note: MyoWare and the Cable Shield are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation treatment, or prevention of disease, in a man or other animals
AR$24,544
49% OFF
AR$12,582
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$24,544
49% OFF
AR$12,582
20% de reintegro pagando con MODO en AR$ y con Prex en U$S
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
The MyoWare 2.0 Muscle Sensor is designed to be wearable, allowing you to attach biomedical sensor pads directly to the board itself. However, there still may be cases where you want to mount the sensor pads away from the board; this is where the MyoWare 2.0 Cable Shield comes in. The shield includes a 3.5mm TRS jack where you can attach a traditional three-electrode sensor cable, allowing you to test and use the muscle sensor without actually attaching the board to your person.The MyoWare 2.0 Cable Shield is also equipped with snap connectors on the board so you can easily stack it. Unlike the other shields in the MyoWare 2.0 ecosystem, this board snaps to the bottom side of the MyoWare 2.0 Muscle Sensor. Use this shield for non-wearable projects that are housed in an enclosure or that target muscles that are too small or situated such that the on-board electrode sockets would not be suitable.Note: MyoWare and the Cable Shield are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation treatment, or prevention of disease, in a man or other animals.The MyoWare 2.0 ecosystem consists of shields that easily interface with the MyoWare 2.0 Muscle Sensor, which is a low-cost, compatible with Arduino, all-in-one electromyography (EMG) sensor from Advancer Technologies. The innovative connector system allows users to easily snap shields together with a compact low profile and connect to a microcontroller's analog input to measure raw, filtered, and rectified electrical activity of a target muscle. This eliminates the need to solder connections between boards.This product is a collaboration with Brian Kaminski from Advancer Technologies. A portion of each sale goes back to them for product support and continued development.
