Oono

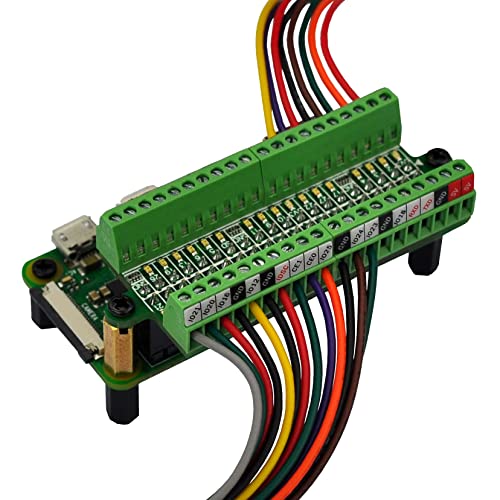

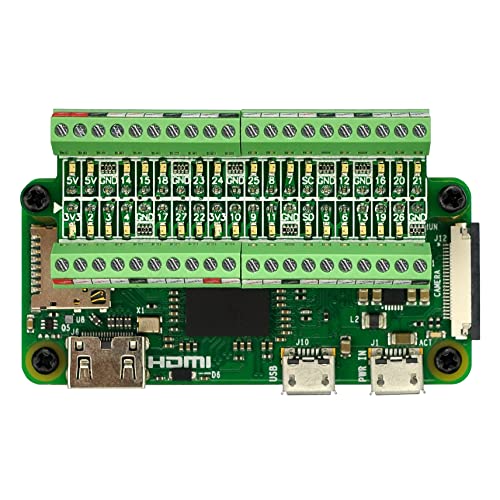

Ultra-Small RPi GPIO Status LED & Terminal Block Breakout Board Module for Raspberry Pi
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- The item has been soldered and assembled. Support for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Model B, Pi Zero, Pi Zero-W, Zero-2W.
- GPIO status LED and power 5V / 3.3V indication. GPIO output or input level high LED on, output or input level low LED off. 5V blue, 3.3V red, GPIOs green. The position of the LED is in a one-to-one correspondence with the position of the Raspberry Pi 2x20pin connector, and the logic level of the GPIO can be observed very quickly and intuitively. The driving current of each LED is only 0.1mA, so you don't have to worry about it affecting the read and write status of GPIO.
- Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper.
- 2x20 positions header connect to Raspberry Pi board. FR-4 fiber glass PCB, dual copper layers.
- Packing list: 1x terminal block breakout module, 4x M2.5x6mm screws, 4x 10mm nylon standoffs. 2x 11.5mm brass standoffs, 1x small slotted screwdriver (NOTE: the item not include Raspberry Pi Board).
Producto prohibido
Este producto no está disponible
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
Ultra-small RPi GPIO Status LED & Terminal Block Breakout Module. 1, The item has been soldered and assembled. Support for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Model B, Pi Zero, Pi Zero-W, Zero-2W. 2, GPIO status LED and power 5V / 3.3V indication. GPIO output or input level high LED on, output or input level low LED off. 5V blue, 3.3V red, GPIOs green. The position of the LED is in a one-to-one correspondence with the position of the Raspberry Pi 2x20pin connector, and the logic level of the GPIO can be observed very quickly and intuitively. The driving current of each LED is only 0.1mA, so you don't have to worry about it affecting the read and write status of GPIO. 3, Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper. 4, 2x20 positions header connect to Raspberry Pi board. FR-4 fiber glass PCB, dual copper layers. 5, Packing list: 1x terminal block breakout module, 4x M2.5x6mm screws, 4x 10mm nylon standoffs. 2x 11.5mm brass standoffs, 1x small slotted screwdriver (NOTE: the item not include Raspberry Pi Board).
