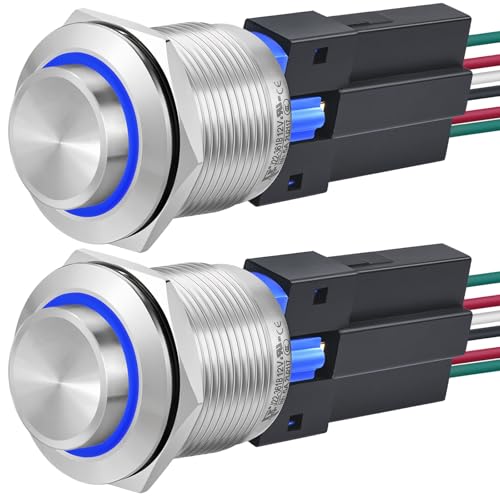

UL Certification 2Pcs 22mm High Latching Push Button Switch Waterproof IP67 On Off with 24V LED Light for 7/8" Mounting Hole with Wire (Blue, Latching,24V)

Size:

Latching,24V

Color:

Blue

Disponibilidad:
En stock
Peso con empaque:
0.33 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto

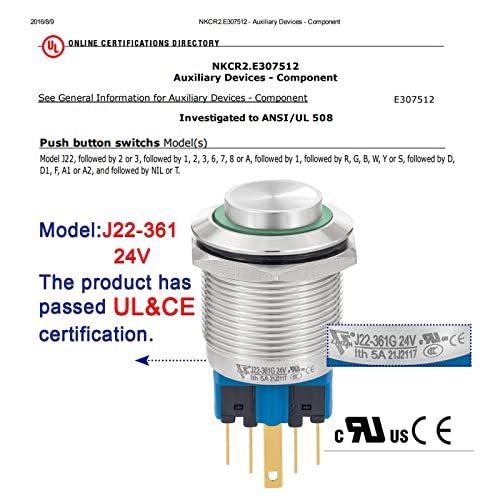

  • [Certifications] Our Push Button Switch through UL and CE certification. 22mm Latching Push Button Switch: Push it, ON; Push it again, OFF. Contact Configuration: 1 NO+1 NC (SPDT).

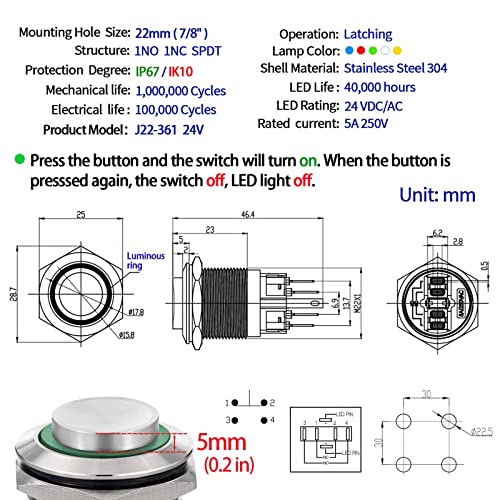

  • [Product size] LED voltage: 24V (AC/DC), LED Life:40000 hours. Hole size required: 7/8'' /22mm. Head diameter: 25mm (1"), total button length: 46.4mm (1.83"), installation thread length: 12.6mm (0.5 ") .
  • [waterproof] IP67 waterproof and IK10 protection can be used in wet,dusty,outdoor enviroment. Mechanical life: 1,000,000 cycles, Long lifestime and good quality.

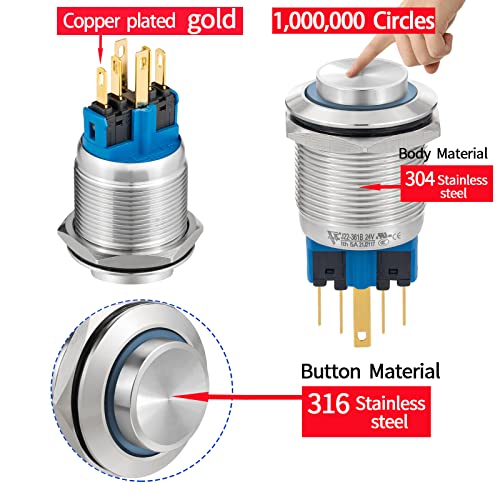

  • [material] Shell material: Stainless steel 304. Head Shape:High Round ,Head material: Stainless steel 316. Contact Material: Silver Alloy.
  • [Package and Service] Package Content: 2PCS *Push Button Switch,2* Wire Socket Plug.
AR$78,707
49% OFF
AR$40,365

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

AR$78,707
49% OFF
AR$40,365

Pagá fácil y rápido con Mercado Pago o MODO

Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Crédito y Débito

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Package include : 2* High Round Latching Push Button Switch 2* Wire Connector Sockets Our Push Button Switch through UL certification and CE certification. What's Latching Switch: What's Latching Switch: Latching switch, Press the button and the switch will turn on. When the button is pressed again, the switch off. With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket What's Momentary Switch Used for: Great for electromagnetic starter, relay, Doorbell, Horn Button Switch, PC Power Switch or any circuit controls What's Note: -These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater -The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out What's Customer Support: If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you. When working voltage is 12V or 24V, current resistive is 5 A, current inductive is 2 A.Thermal Current: 5A ,Maximum Voltage: 250V AC, Minimum Voltage: 5V DC, 1mA. Specifications: Switch Name: J22-361 Net Weight: 27.8g Head diameter: 0.98"(25mm) Mounting hole size: 7/8" (22mm) Total length: 1.79" (45.5mm) Switch combination: SPDT 1NO1NC Switch rating: 5A/250VAC LED rating: LED Rated Voltage:24V DC/AC 15mA Head shape:High Round Head Enclosure material: 304 Stainless Steel Head material: 316 Stainless Steel Protection level: IP67, IK10
