HCDC Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W Terminal Block Module - Green, Screw Connector, Nylon Material, DIN Rail Mount

Disponibilidad:
En stock
Peso con empaque:
0.34 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto

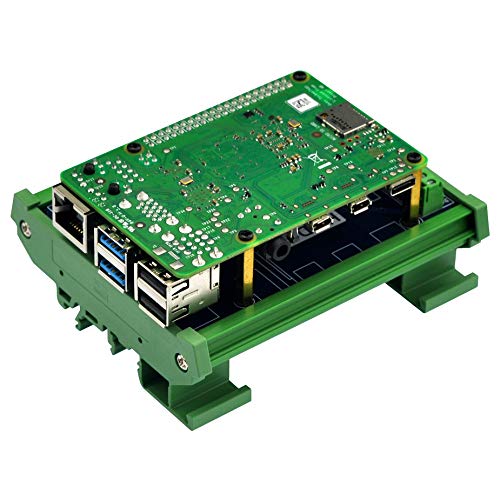

  • DIN Rail Mount Screw Terminal Block Adapter Module. With the adapter module you can easily extend Raspberry-Pi projects to industrial control applications. Applications for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W.
  • Pitch 3.81mm/0.15" high quality screw terminal block, wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw. FR-4 fiber glass PCB, dual copper layers. CN3 and CN4 1:1 on board connected. CN3 connect Raspberry Pi board. CN4 Extension connector, you can use a FRC 40-pins wire connect to other devices.
  • Module Dimensions: L 102mm x W 87mm x H 45.5mm, PCB Dimensions: L 100mm x W 72.5mm.
  • High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
  • Note: the item not include Raspberry-Pi module and iron rail.
