SKU/Artículo: AMZ-B07TZGVY8K

Vsdisplay

VSDISPLAY 8.4" 4 Wire resistive Touch Panel with USB Controller for 8.4 inch 800x600 LCD Panel

Disponibilidad:
En stock
Peso con empaque:
0.51 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto
  • Compatible work For 8.4inch 800x600 LCD Panel

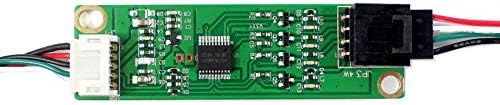

  • USB USB Controller ,Power Requirements D.C.+5V
  • Dimension Size: 187mm x 141mm Display Area: 172mm x 129.5mm
  • Packing list: 1× 8.4inch 4-Wire Resistive Touch Panel VS084TP-A1 1× 4-Wire USB Controller Card 1× USB Cable 1× Converter Cable
AR$103,981
31% OFF
AR$71,714

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

AR$103,981
31% OFF
AR$71,714

Pagá fácil y rápido con Mercado Pago o MODO

Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Crédito y Débito

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Description: USB USB Controller Dimension Size: 71mm x 20mm x 10mmPower Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise) Operating Temperature 0 to 50°CStorage Temperature -40 to 80°CRelative Humidity 95% at 60°CInterface USB 1.1 & 2.0 Resolution 2048×2048 resolution Report rate USB Model: Max. 160 points/sec Response time Max. 20 ms Attached Cable 6' shielded cable with USB-A connector for USB port Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices EMI Unaffected by environmental EMI Panel resistance 4 wire resistive model: 200 ~ 900 ohm MTBF 200,000 hrs PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+Touch Panel Dimension Size: 187mm x 141mmDisplay Area: 172mm x 129.5mmFPC connector: 4pin 0.5mm pitch bottom contact.Packing list:1× 8.4inch 4-Wire Resistive Touch Panel VS084TP-A11× 4-Wire USB Controller Card1× USB Cable1× Converter Cable
