Wayintop

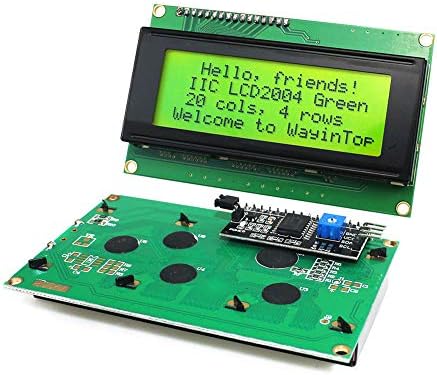

20x4 2004 LCD Display Module with IIC/I2C/TWI Serial Interface Adapter (Yellow Green/2004)
Color:
Yellow Green
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- 【20x4 LCD Display】With this shield, you can display whatever you want by programming the for Arduino board. Therefore, this is a perfect choice to make your project more interesting and vivid! Totally display 20 characters in one row, 4 rows can display 80 characters.
- 【IIC Interface Adapter】No need to buy the adapter extra, this kit contains a IIC/I2C/TWI Serial Interface Adapter, with witch you can start your project at any time.
- 【Easy to Use】 Less I/O ports are occupied, only four - VCC, GND, SDA (serial data line), SCL (serial clock line). Address of the module: 0x27
- 【Support IIC Interface】It only takes two I/O port thus saving more for other usages. You can adjust the contrast by the potentiometer at its back. If you don’t want the back light, you can also unplug the jumper cap at the LCD back.
- 【Widely Applications】LCD display module based on the popular controller, works great with for Arduino and other micro-controllers.
AR$25,087
31% OFF
AR$17,296
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$25,087
31% OFF
AR$17,296
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
WayinTop: We aim to make your work Easier & Funnier! The LCD2004 with an I2C port is developed to solve the multiple IOs problem. It is also simple to handle. It has only two bidirectional data lines, a serial data line and a serial clock one. Specification: Display: 4 lines x 20 characters Backlight: yellow green with blcak character color Pin Definition: VCC/ GND/SDL and SCA Contrast Adjust: Potentiometer Backlight Adjust: Jumper Default Address: 0x27 Working Voltage: 5V How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5 Application: Used to display Characters, letters and Numbers Package Included: 1 x 2004 LCD Display Module Yellow Green 1 x IIC/I2C/TWI Serial Interface Adapter
