SKU/Artículo: AMZ-B07DSW2QBV

Noyito

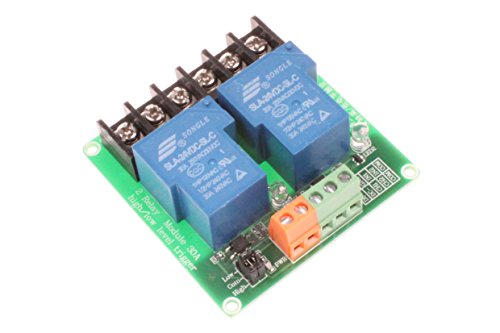

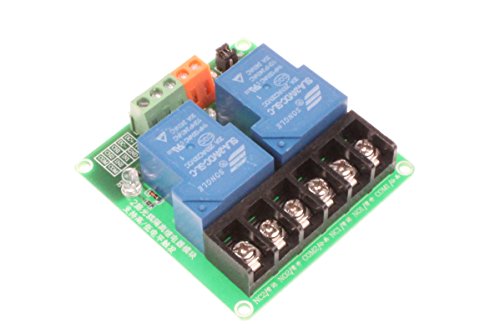

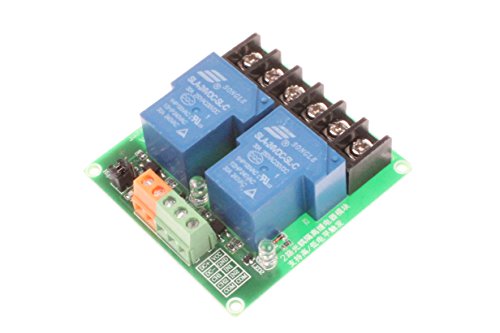

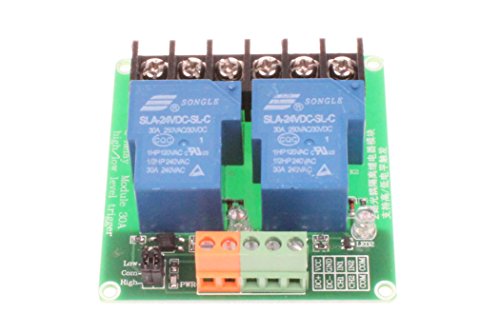

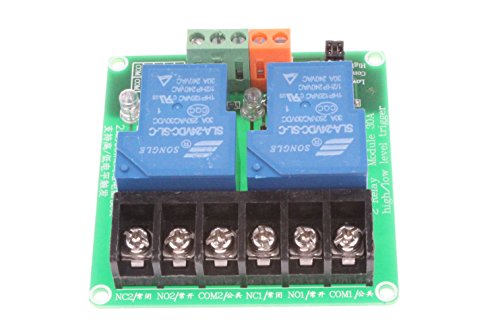

NOYITO 30A 2 Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 30A for PLC Automation Equipment Control Industrial Control (2 Channel 24V)

Style:

2-Channel 24V

Disponibilidad:
En stock

Peso con empaque:
0.33 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Product Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
Each channel with optocoupler isolation, anti-interference ability.
Using high-power relay, control the load up to 30A.
Each channel with relay on / off LED indicator.
Module load voltage: DC30V / AC 250V 30A ; Module Power Supply : DC 24V（Module supply voltage must be DC, and the voltage to be consistent with the relay voltage.）.
NOYITO 30A 1 2 4-Channel Relay Module User Manual https://1drv.ms/b/s!AlzQUCOyZQhKij5iUaqI613FPf1x?e=9gvnH9

AR$33,889

55% OFF

AR$15,403

AR$33,889

55% OFF

AR$15,403

Llega en 8 a 12 días hábiles

con envío

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Tarjetas de Crédito y Débito

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Información de aduanas

para tu compra

Garantía de entrega

Entrega 100% garantizada.

Devoluciones

Conocé nuestra política

Pago 100% seguro

con todos los medios de pago

Elegí cómo pagar

en pesos o en dólares

Sé ciudadano Tiendamia

para beneficios extra

Unite ahora

Atención al cliente

Consultá nuestro centro de atención

Contactanos

Conoce más detalles

Electrical parameters: Supply voltage: DC24V; Quiescent current: 5mA; Maximum operating current: 50mA; Trigger mode: High / Low Level Trigger; Load voltage: DC 30V / AC 250V; Load current: 30A; Module life: 10 million times; Switch the maximum frequency: ≤ 5KHz; Product weight: 200g; Size:70x72x22mm (LxWxH); Mounting hole size:67.5x69.5(LxW); Trigger voltage range: High-level trigger: DC 12-24V relay on; DC 0-8.5V relay off; ---- Low-level trigger: DC 0-12V relay on; DC 13-24V relay off; Pacakage Included: 1pcs 2-Channel Relay Module
