SKU/Artículo: AMZ-B07CFQMDJ3

Noyito

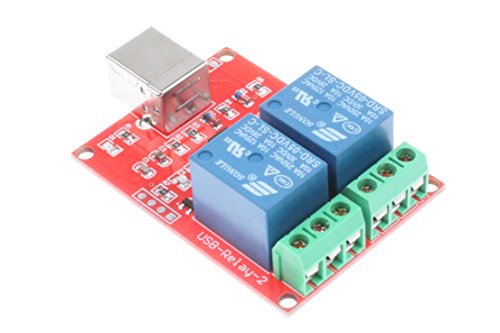

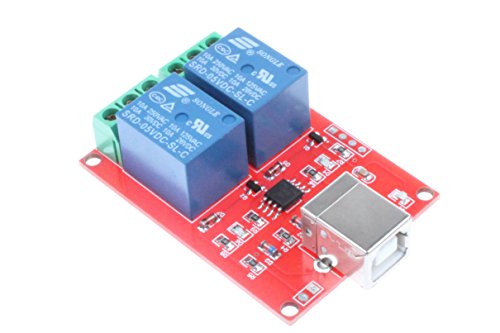

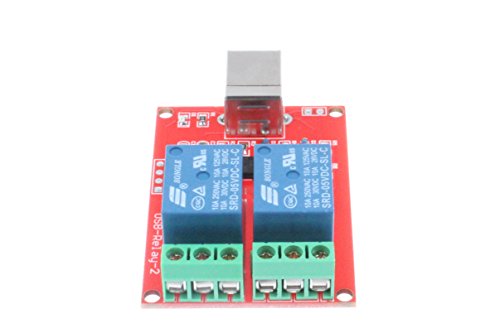

NOYITO 2-Channel 5V Computer USB Control Switch Relay Module Drive-Free Relay Module Plug and Play Suitable for PC Smart Controller

Style:

5V 2-Channel

Disponibilidad:
En stock
Peso con empaque:
0.33 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto
  • The module uses HID technology, without any driver, plug and play. Support WIN7,10, XP 32-bit, 64-bit system, easy to use simple.
  • Onboard square USB interface, stable connection; use of high-performance USB control chip; use dedicated relay driver chip ULN2803, relay work more stable;
  • Power outlet and terminal, two access power mode convenient and flexible. After connecting the power, even if the computer shut down or USB from the computer pull out, the relay can also maintain the set state.
  • 【NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply. 】
  • PCB size: 56.5mm * 40.6mm, fixed hole size: 3mm, fixed hole center moment: 52.2mm * 36.6mm.
  • NOYITO USB Relay External Use Development Library , Code , Test app Download
  • https://1drv.ms/u/s!AlzQUCOyZQhKgWS7uH0cskD7GHlD?e=wecwdX
AR$27,266
31% OFF
AR$18,799

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

AR$27,266
31% OFF
AR$18,799

Pagá fácil y rápido con Mercado Pago o MODO

Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Crédito y Débito

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

【NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply. 】 Product parameters: Input voltage: DC 5 V; Input current: greater than 300mA; Wiring method: NC / COM / NO; Relay parameters: Maximum control AC 250V, 10A AC load and maximum DC30V 10A DC load; Module Package Inluded: 1*2-Channel 5V USB Control Switch Relay Module
